Available Materials
17-4 Stainless Steel (H900)
Available Coatings
Stainless:
Nitride

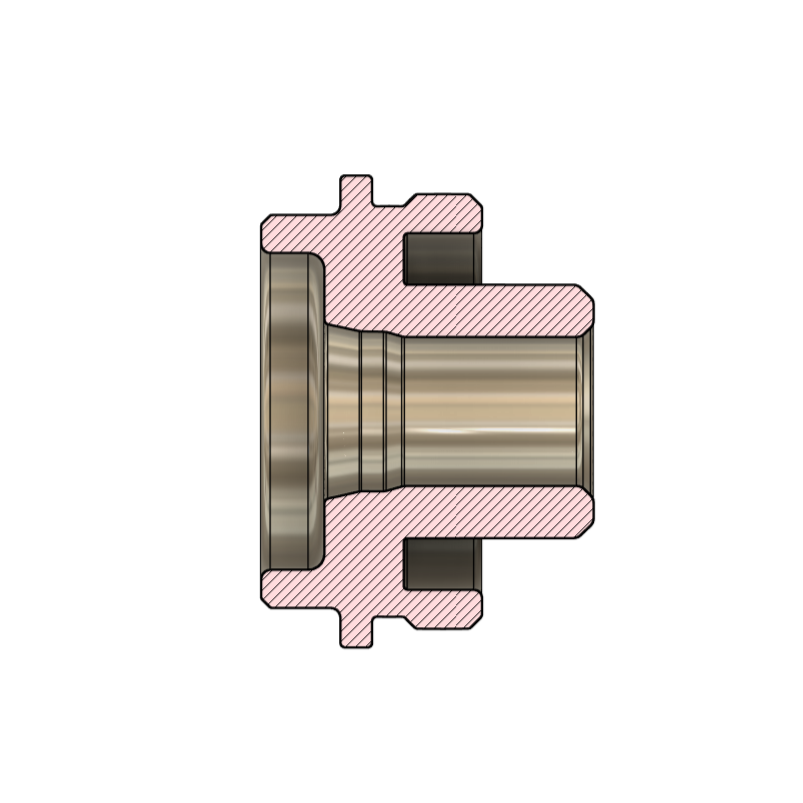

Dimensions
Offset from Mount Thread Shoulder to Back of Mount Taper :
0.15”
Exterior Wrench Flat Length :
0.15”
Interior Wrench Flat Length :
0.35”
Overall Length:
1.05”
Outer Threads:
1.375” x 24 (HUB)
0.35” Thread Length
Inner Thread Options:
1/2 x 28
5/8 x 24
0.60” Thread Length
